Tomei Technical Trax Advance 2-Way LSD | 1985-1987 Toyota AE86 (TC101A-TYTD2)

Technical Trax Advance 2.0-Way LSD Pro Kit for 1985-1987 Toyota AE86 by Tomei

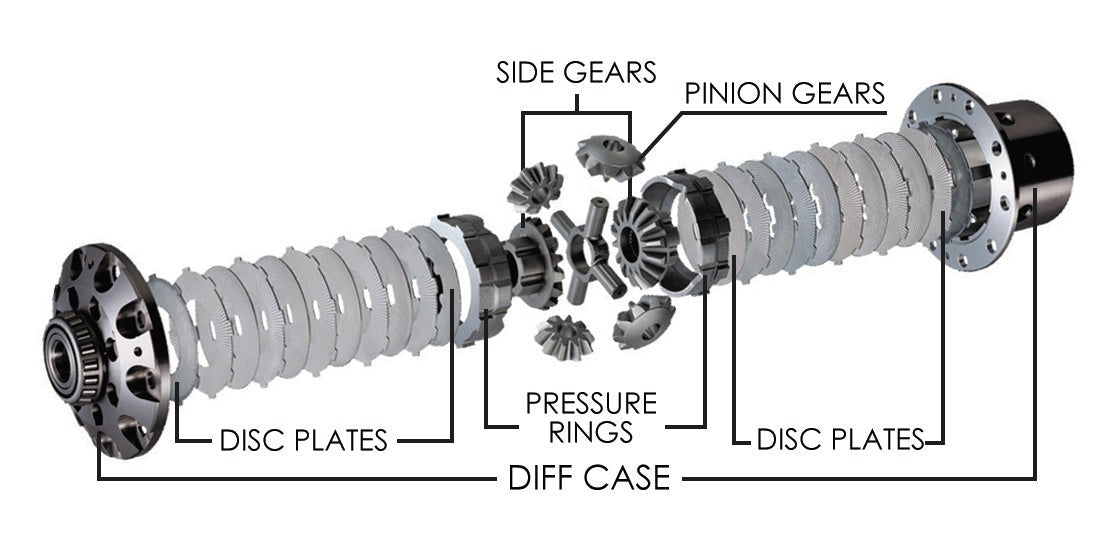

The T-Trax Advance LSD has several advantages over similar products from other manufacturers. It features optimized cam angles, spring discs, larger surface area clutch disc and a higher intial torque setting. These all translate to improved corner entry, more precise driving, better corner exit traction as well as quicker response through successive corners. T-Trax Advance offers superior performance in every way.

Features

• Ring Gear Bolt PCD: 125mm

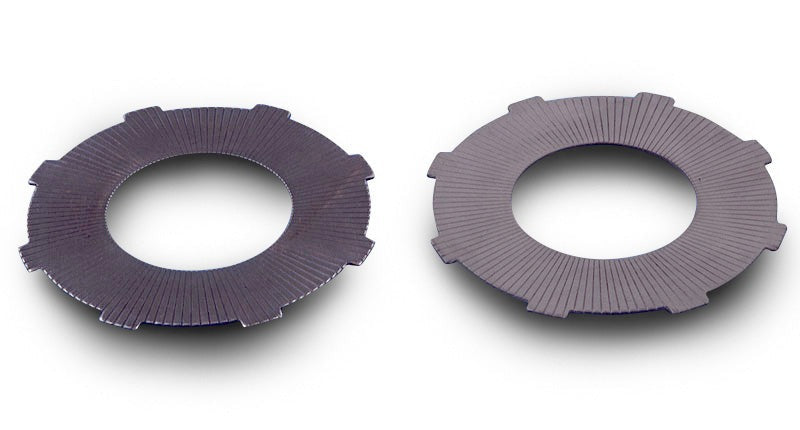

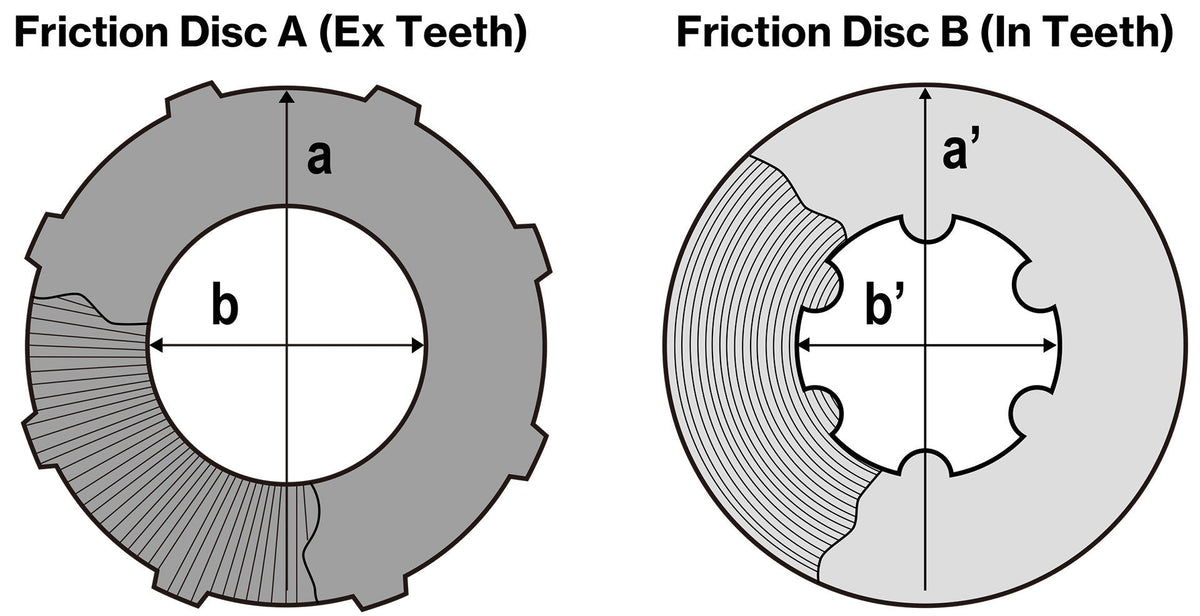

• Disk Diameter: 85mm
• Disk Interior Teeth: 6
• Disk Exterior Teeth: 6
• Thickness: 1.7mm
• Size & Number of Ring Gear Bolts: M11 (8)
• Number of Spline: 23T
• Inner Flange Diameter: 30.1mm
• Initial Torque(kg/m): 5.5-6.0
• Pressure Ring Cam Angle: 45° x 45°

Benefits

• Utilizes original factory flange
• Quiter and improved efficiency

Applications

• 1985-1987 Toyota AE86

What's In The Box?

• 1 - LSD Pro Kit

References

• Installation Instructions
