Tomei Technical Trax Advance 1.5-Way LSD | 2005-2015 Mazda Miata (TC101B-MZZE1)

Technical Trax Advance 1.5-Way LSD Pro Kit - ZE1 for 2005-2015 Mazda Miata by Tomei

The T-Trax Advance LSD has several advantages over similar products from other manufacturers. It features optimized cam angles, spring discs, larger surface area clutch disc and a higher intial torque setting. These all translate to improved corner entry, more precise driving, better corner exit traction as well as quicker response through successive corners. T-Trax Advance offers superior performance in every way.

Features

• Ring Gear Bolt PCD: 134mm

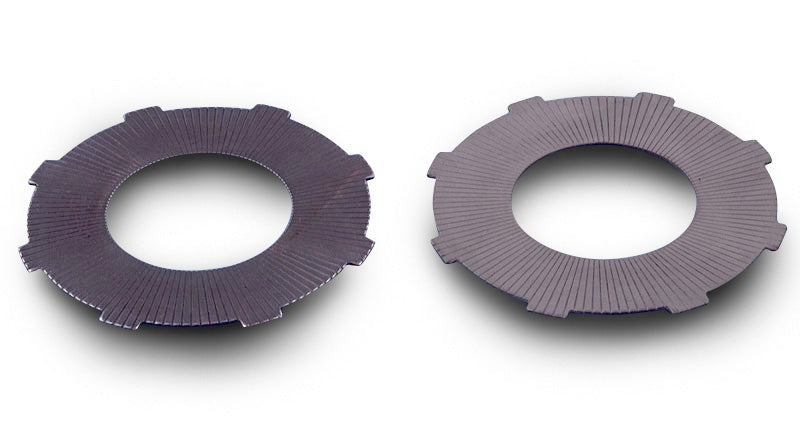

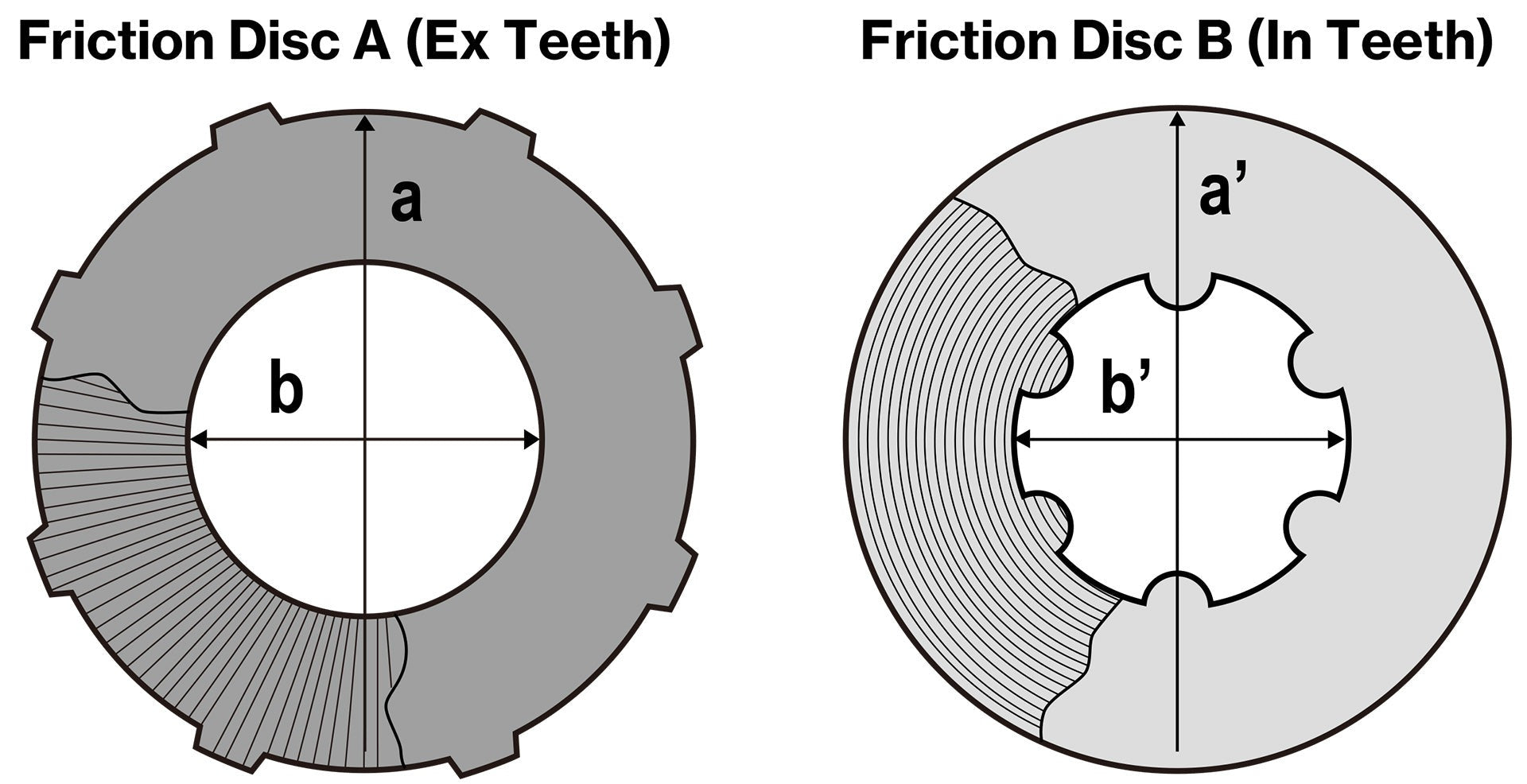

• Disk Diameter: 93mm
• Disk Interior Teeth: 6
• Disk Exterior Teeth: 6
• Thickness: 1.7mm
• Size & Number of Ring Gear Bolts: M10 (10)
• Number of Spline: 28T
• Inner Flange Diameter: 29.4mm
• Initial Torque(kg/m): 6.0-8.0
• Pressure Ring Cam Angle: 45° x 20°

Benefits

• Utilizes original factory flange
• Quiter and improved efficiency

Applications

• 2005-2015 Mazda Miata

What's In The Box?

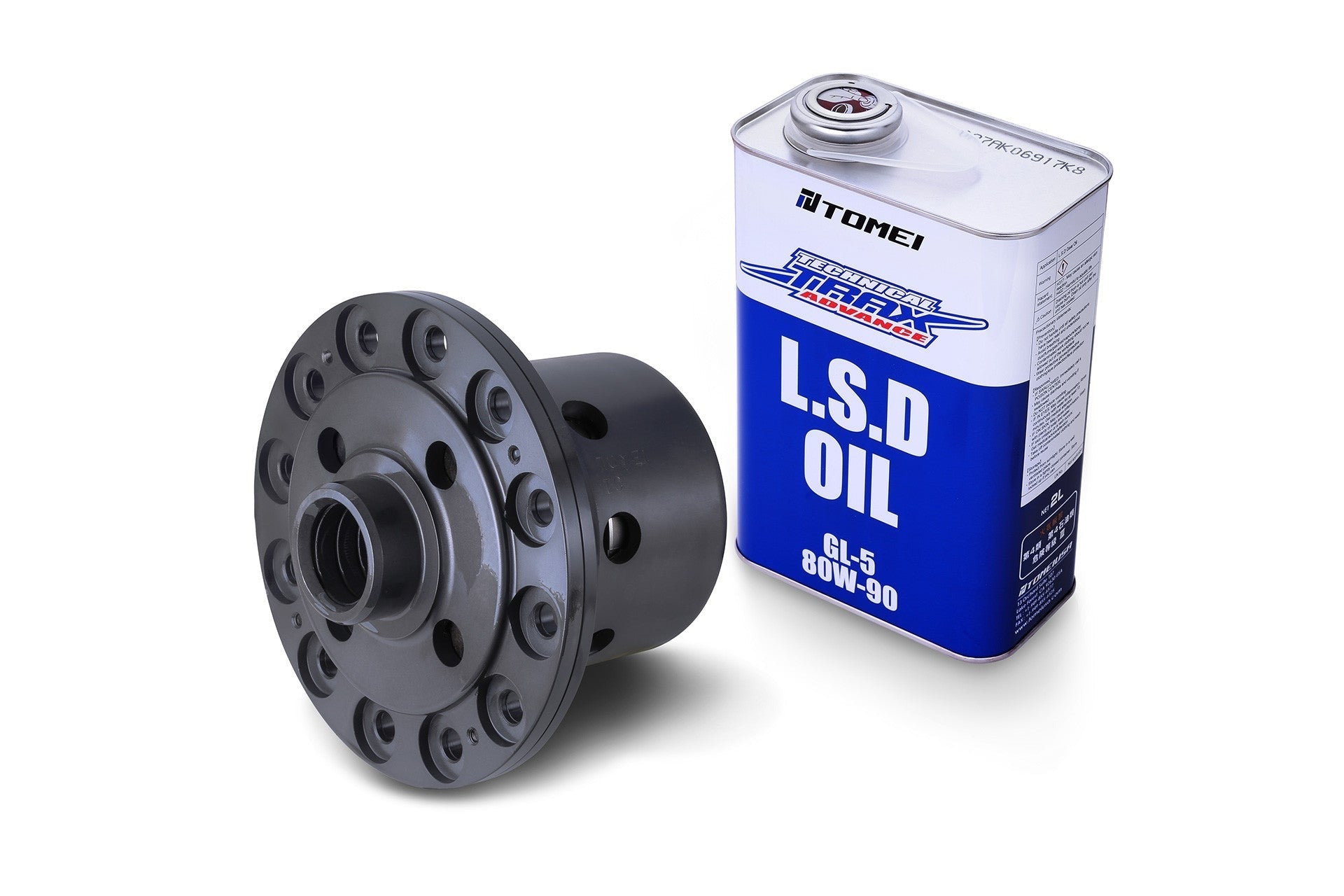

• 1 - LSD Pro Kit

References

• Installation Instructions
