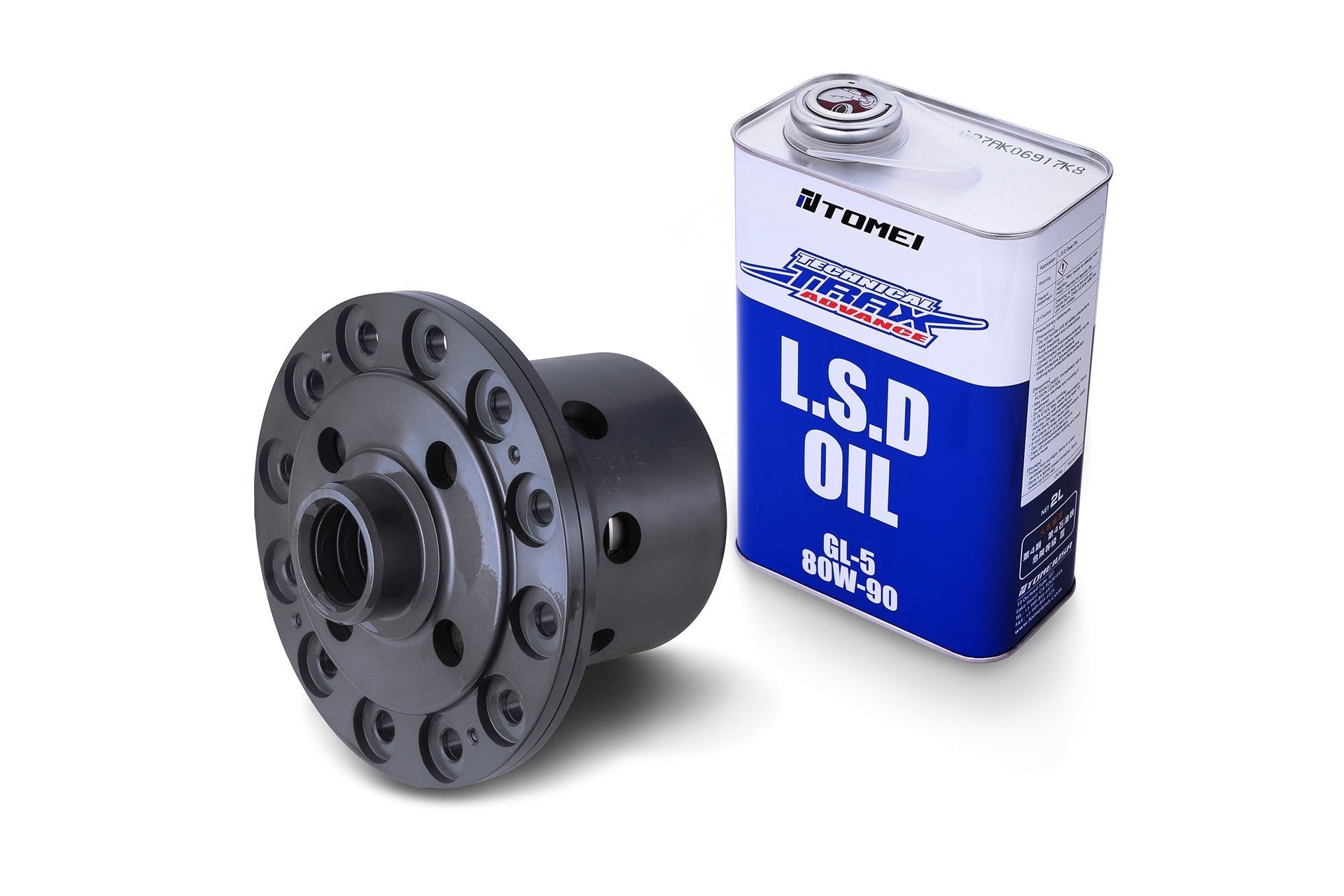

Tomei Technical Trax Advance 1.5-Way LSD | 1993-2002 Nissan Silvia S14/S15 (TC101B-NSEX1)

Technical Trax Advance 1.5-Way LSD Pro Kit - Vicous EX1 for 1993-2002 Nissan Silvia S14/S15 by Tomei

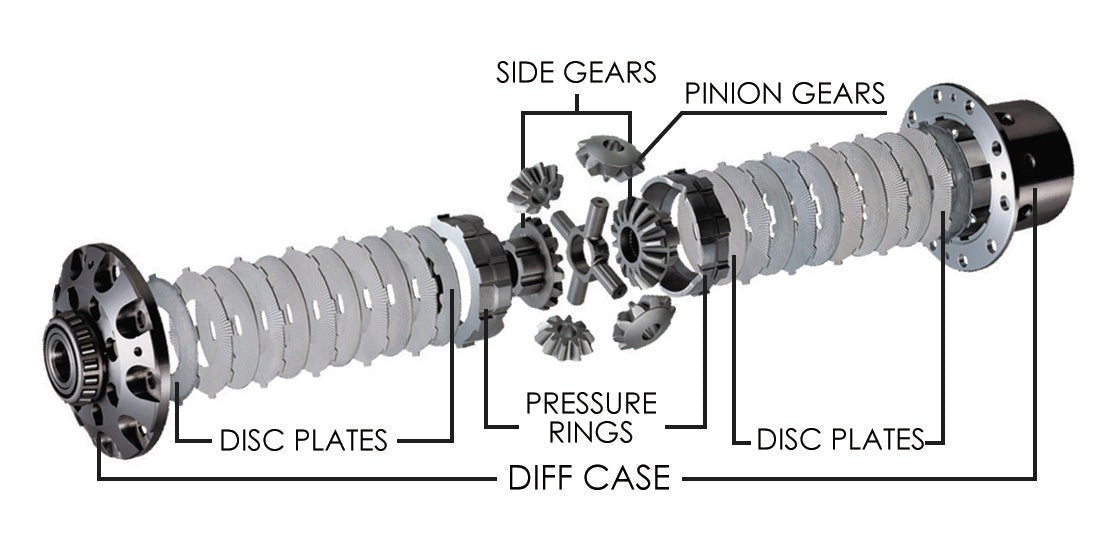

The T-Trax Advance LSD has several advantages over similar products from other manufacturers. It features optimized cam angles, spring discs, larger surface area clutch disc and a higher intial torque setting. These all translate to improved corner entry, more precise driving, better corner exit traction as well as quicker response through successive corners. T-Trax Advance offers superior performance in every way.

Features

• Ring Gear Bolt PCD: 150mm

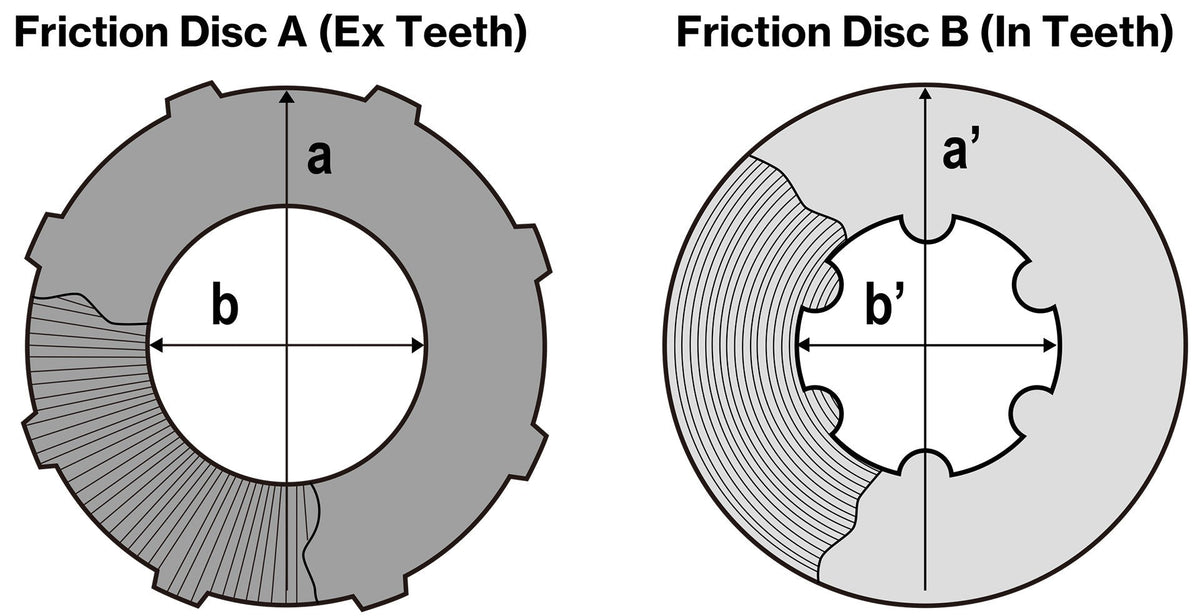

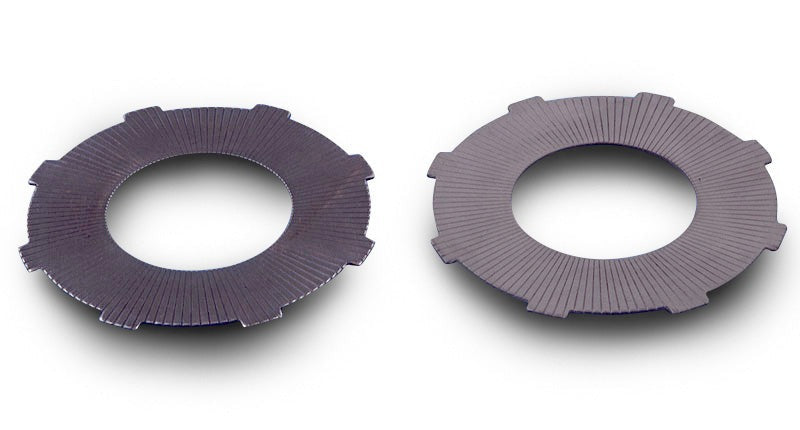

• Disk Diameter: 106mm
• Disk Interior Teeth: 10
• Disk Exterior Teeth: 10
• Thickness: 1.7mm
• Size & Number of Ring Gear Bolts: M13
• Number of Spline: 30T
• Inner Flange Diameter: 32.0mm
• Initial Torque(kg/m): 16.5-18.5
• Pressure Ring Cam Angle: 60° x 45°

Benefits

• Utilizes original factory flange
• Quiter and improved efficiency

Applications

• 1993-2002 Nissan Silvia S14/S15 with SR20DE/SR20DET

What's In The Box?

• 1 - LSD Pro Kit

References

• Installation Instructions
