Tomei Technical Trax Advance 1.5-Way LSD | 1986-1992 Toyota AE86 (TC101B-TYTE1)

Technical Trax Advance 1.5-Way LSD Pro Kit for 1986-1992 Toyota Corolla Sport GT-S by Tomei

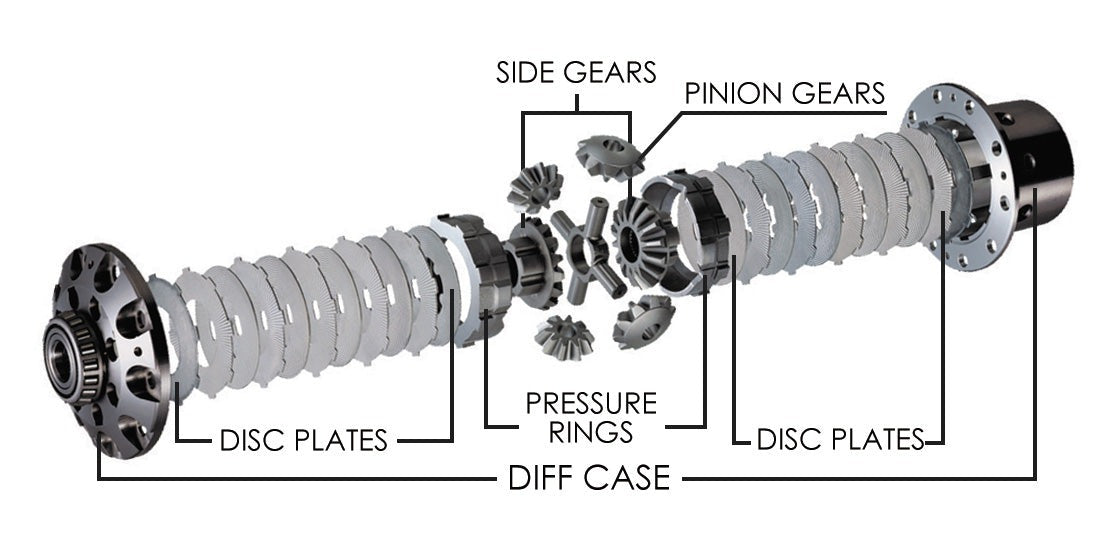

The T-Trax Advance LSD has several advantages over similar products from other manufacturers. It features optimized cam angles, spring discs, larger surface area clutch disc and a higher intial torque setting. These all translate to improved corner entry, more precise driving, better corner exit traction as well as quicker response through successive corners. T-Trax Advance offers superior performance in every way.

Features

• Ring Gear Bolt PCD: 125mm

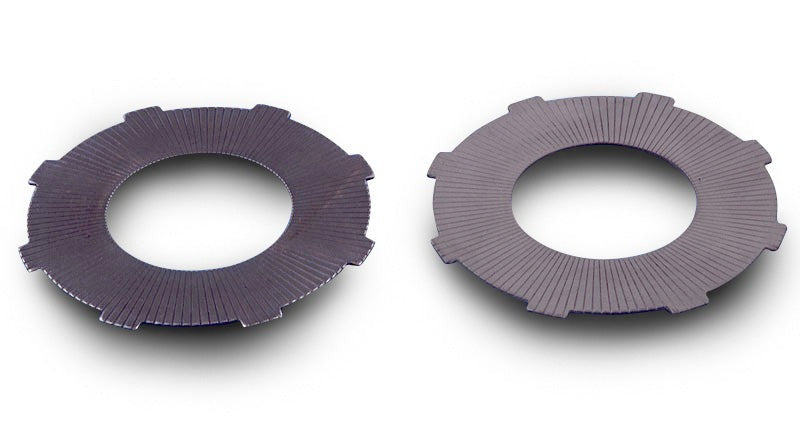

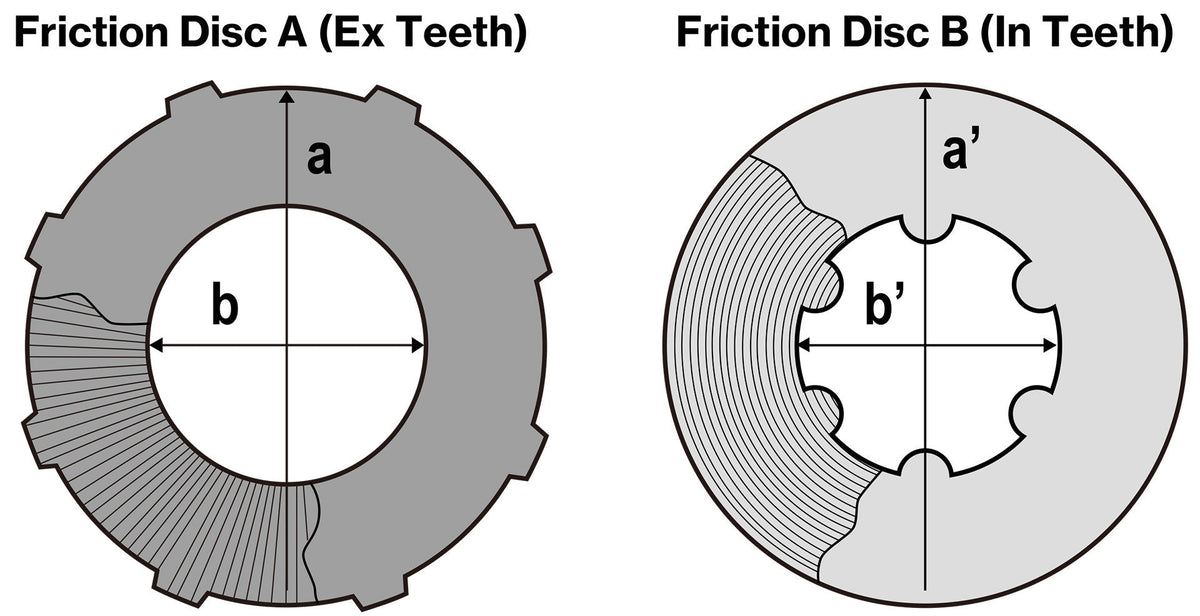

• Disk Diameter: 85mm
• Disk Interior Teeth: 6
• Disk Exterior Teeth: 6
• Thickness: 1.6mm
• Number of Spring Disks: -
• Size & Number of Ring Gear Bolts: M11 (8)
• Number of Spline: 30T
• Inner Flange Diameter: 30.0mm
• Initial Torque(kg/m): 5.5-6.0
• Pressure Ring Cam Angle: 50° x 20°

Benefits

• Utilizes original factory flange
• Quiter and improved efficiency

Applications

• 1986-1992 Toyota Corolla Sport GT-S (AE86 - 4A-G 16V)

What's In The Box?

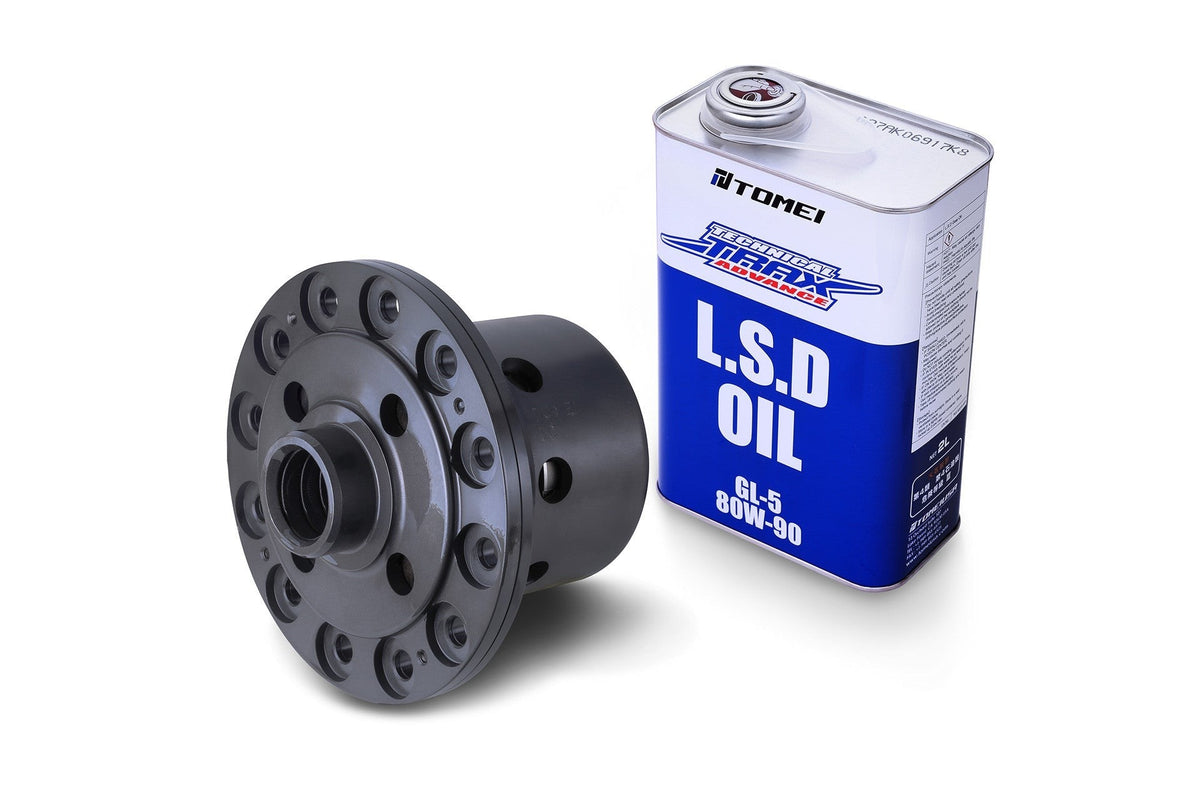

• 1 - LSD Pro Kit

References

• Installation Instructions
