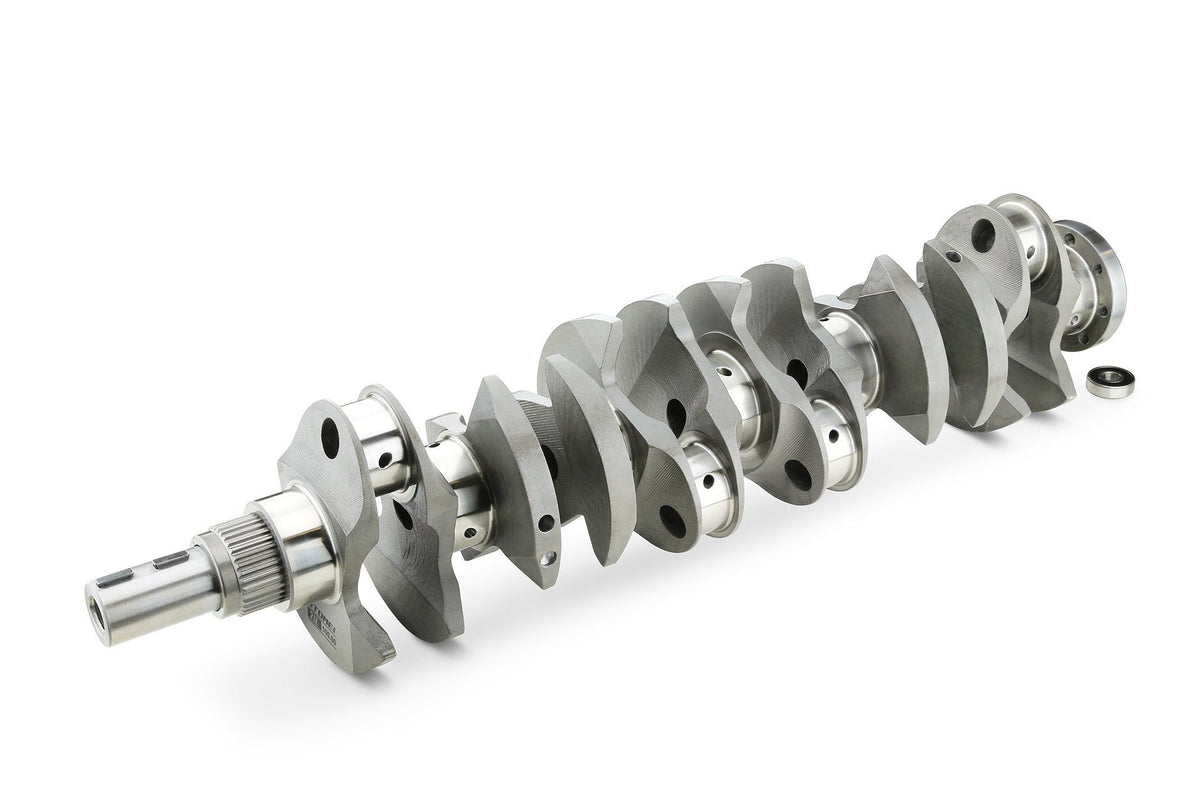

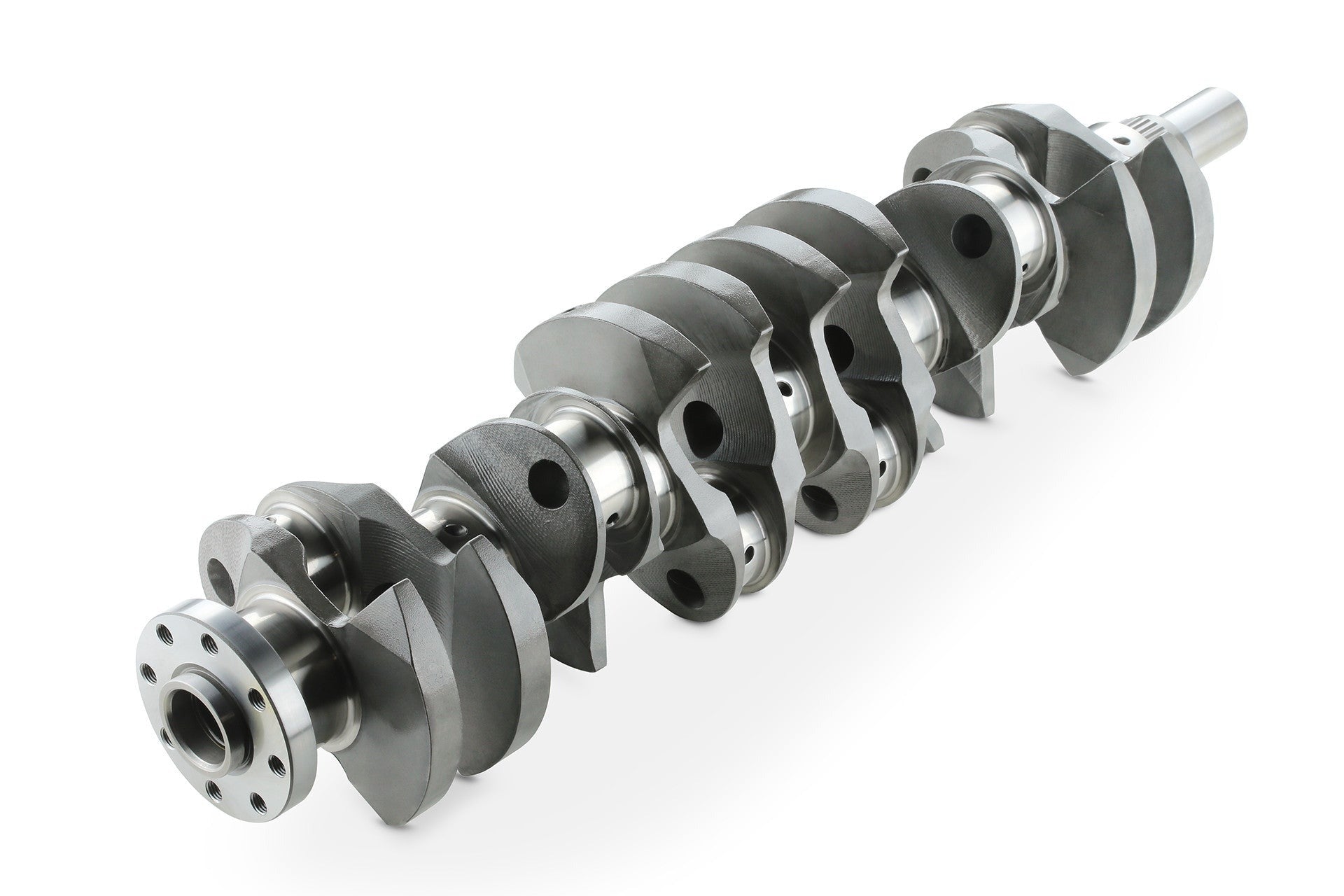

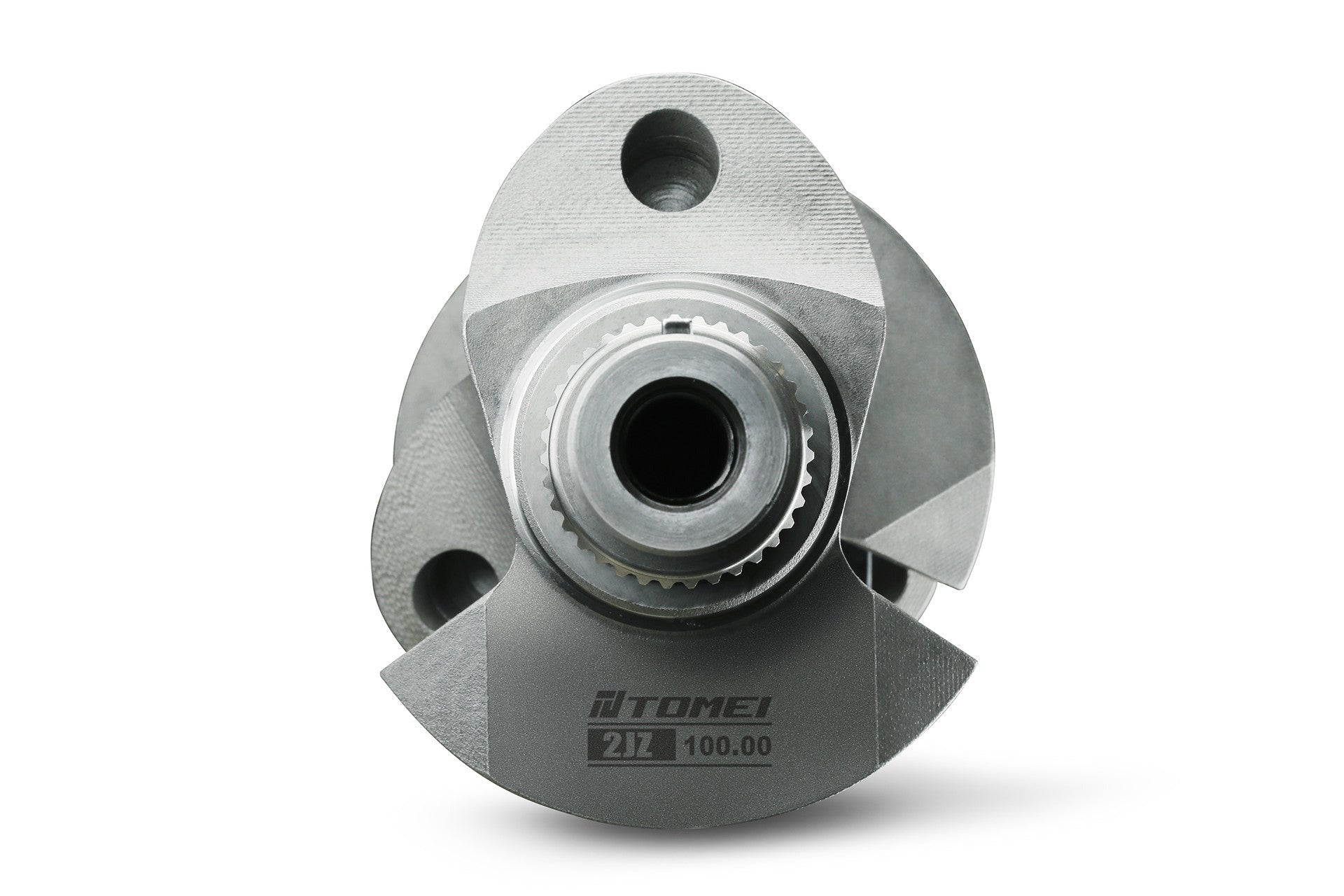

Tomei Forged Billet Full Counterweight Crankshaft - 100.0mm | 1993-2002 Toyota Supra MK.IV (TA204B-TY03B)

Forged Billet Full Counterweight Crankshaft for 1993-2002 Toyota Supra Turbo by Tomei

The reciprocating motion of the pistons is converted to rotary motion to rotate the wheels. Since the revolution is at high speed, high torsional, bending rigidity and wear resistance of the shaft are also important. Weights are placed on the arms on both sides of the crankpin to increase the balance ratio of the counterweight against the inertia of the piston up-and-down motion and crankpin rotational inertia, thereby reducing vibration and minimizing bending to prevent uneven bearing contact.

Features

• Application: 2JZ-GTE
• Stroke: 100.00mm
• Crank Pin: 52.0mm
• Main Journal: 62.0mm
• Counterweight: Full (12)
• Material: 4340
• Surface Treatment: Nitriding
• Weight: 46.41 pounds

Applications

• 1993-2002 Toyota Supra Turbo

What's In The Box?

• 1 - Crankshaft

References

• Installation Instructions
