MSD VW Billet Distributor | VW Type I Air Cooled Engines (8485)

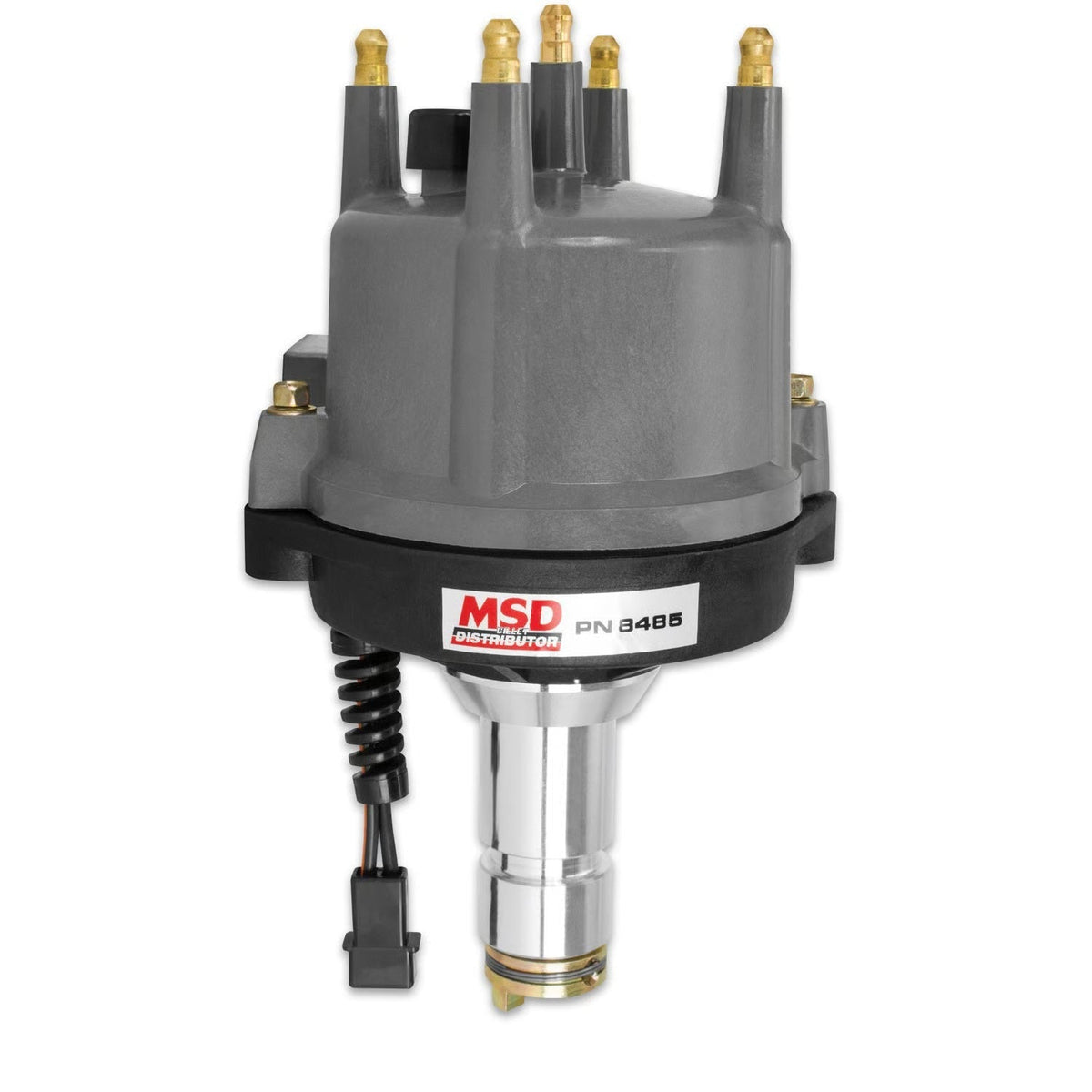

VW Billet Distributor by MSD

A maintenance-free magnetic pickup is responsible for triggering the MSD Ignition. This pickup is accurate to within 1° at any rpm so you won't have to worry about points float or "burbles" at top end speeds. The pickup is triggered by a precision reluctor that is attached to a hardened steel shaft. For increased stability, a sealed ball bearing is used to guide the shaft. Since every engine application is different, the MSD Billet distributor features an easy-to-adjust mechanical advance assembly. By simply changing the advance springs and stop bushing you can tune in 24 different advance curves.

Please Note: Must be used with an MSD Ignition Control & this item has no CARB Exemption Order Number

Features

• Supplied with bolt down distributor cap and rotor
• Advance weight pins are staked and tig welded to the plate
• Nylon pads ensure smooth operation of the advance weights

Benefits

• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Easy-to-adjust mechanical advance with supplied springs and stop bushings

Applications

• VW Type I air cooled engines

What's In The Box?

• 1 - Distributor

References

• Installation Instructions

Warranty

• Limited Manufacturers Warranty
