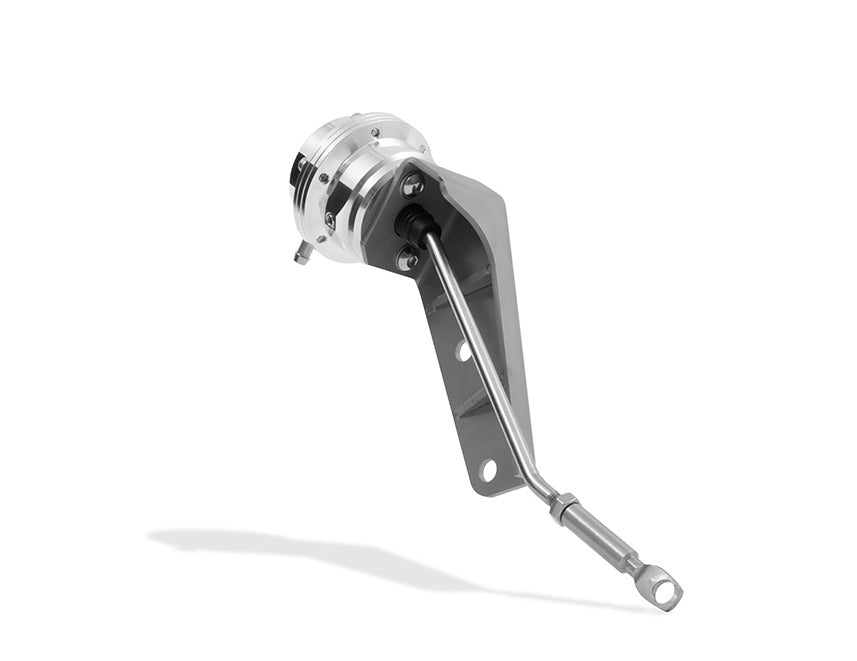

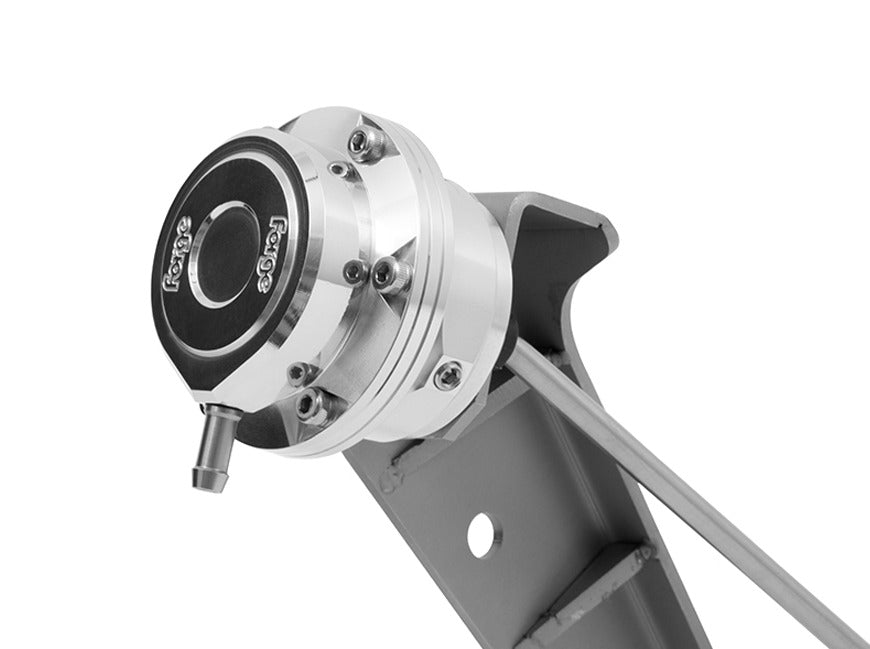

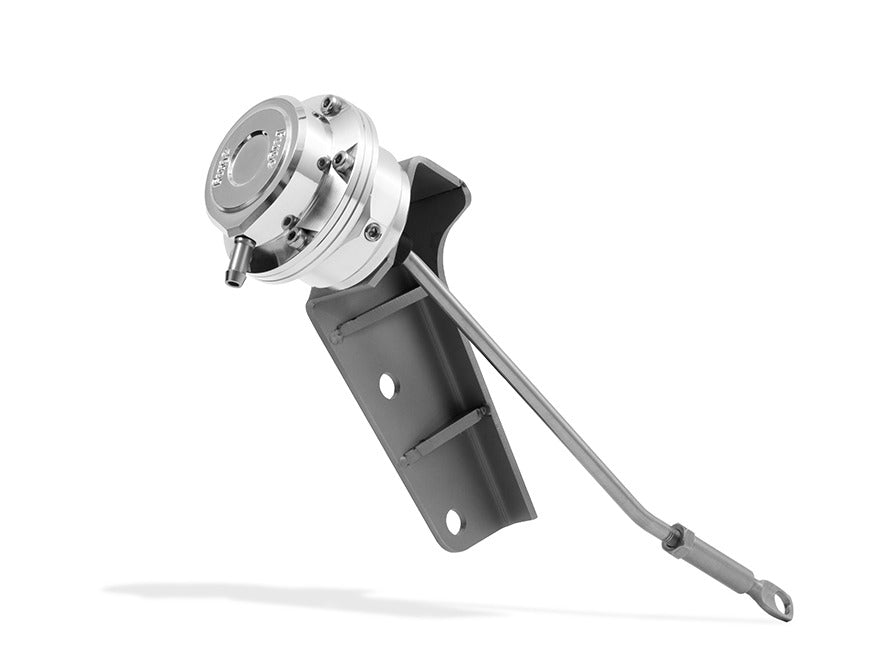

Forge Motorsport Adjustable Actuator | Mitsubishi Evo 4/5/6/7/8 (FMEVACT-PIS)

Adjustable Actuator for Mitsubishi Evo 4/5/6/7/8 by Forge

Designed by Forge to replace the original component this uprated actuator is serviceable and guaranteed for life. It comes with an uprated diaphragm and a billet CNC machined aluminum mounting bracket. Fits EVO 4/5/6/7/8.

This product is built with a predetermined actuator spring suitable for at, or slightly above factory boost levels. It is designed and built with the intention of increasing the boost output of a turbocharged system. Forge cannot guarantee compatibility with all applications, nor the ability to increase the boost output beyond a level that is within the parameters set by the engine-management-system of the given vehicle at the time of installation, whether that system is factory or aftermarket.

Features

• Yellow – running pressure 15 psi (1.0 bar) - spool up/running pressure 9 psi (0.6 bar)
• Blue – running pressure 18 psi (1.2 bar) - spool up/running pressure 14 psi (0.95 bar)
• Red – running pressure 20 psi (1.4 bar) - spool up/running pressure 17 psi (1.1 bar)

Applications

• Mitsubishi Evo 4/5/6/7/8

What's In The Box?

• 1 - Adjustable Actuator

References

• Installation Instructions

Warranty

• Limited Manufacturers Warranty
