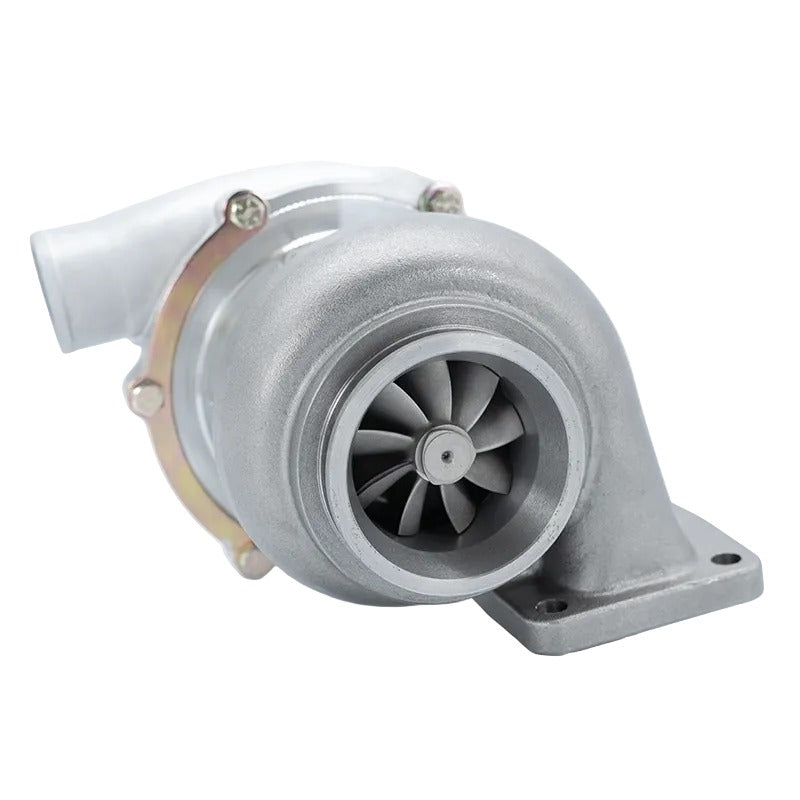

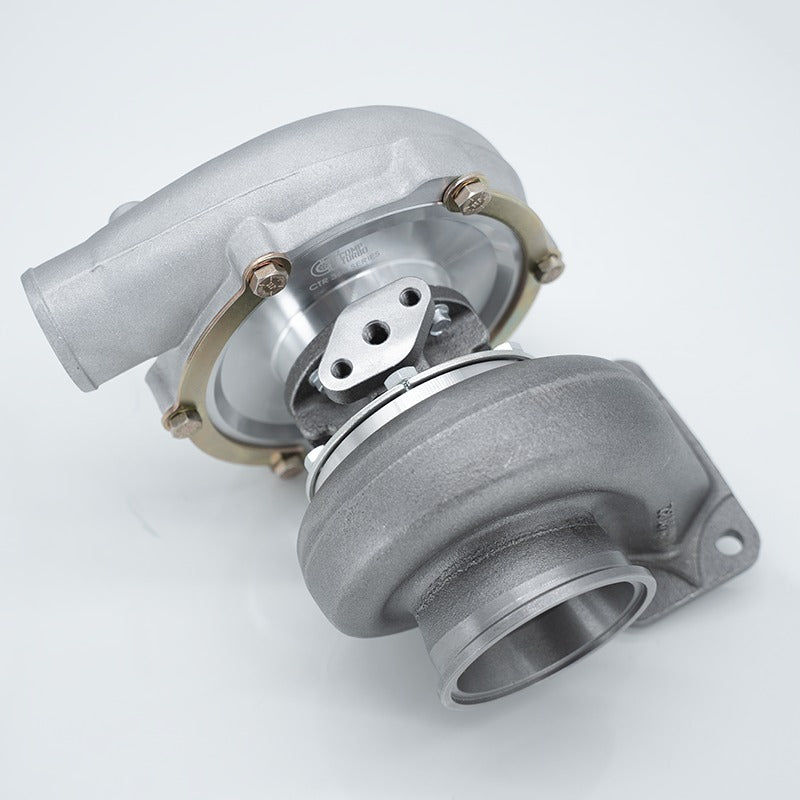

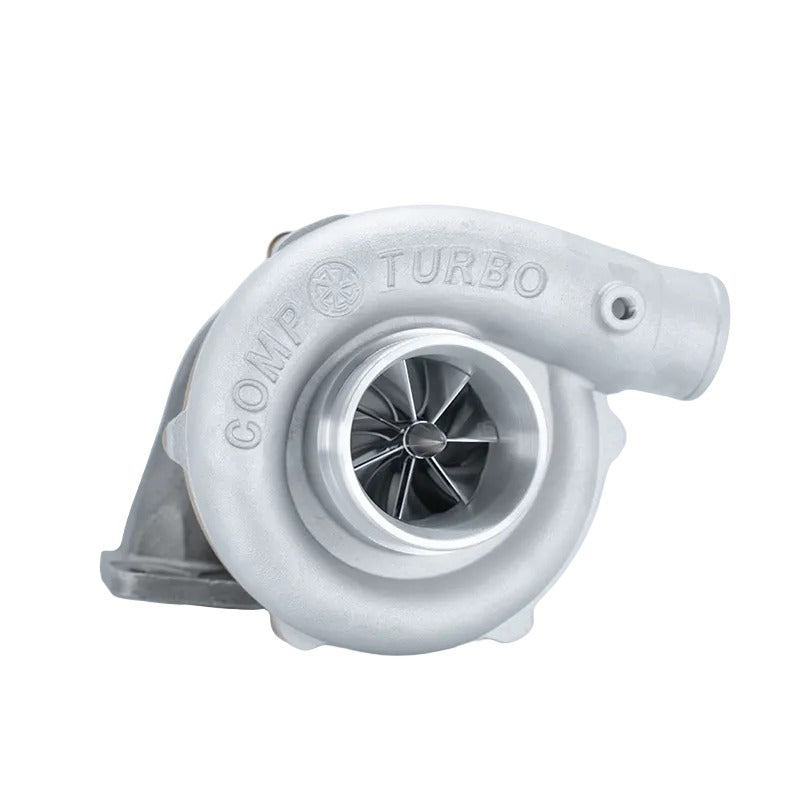

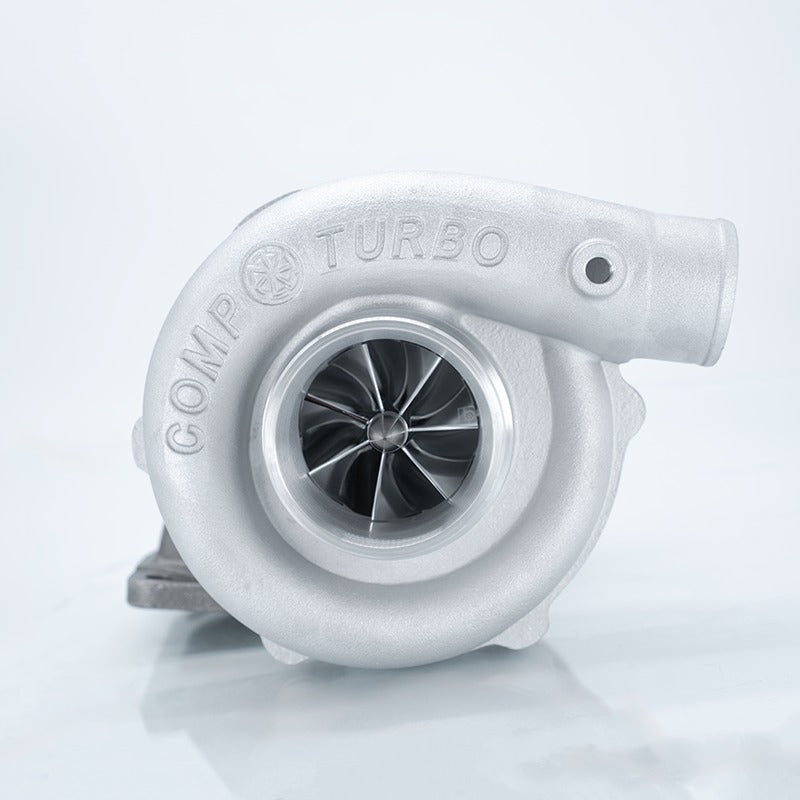

Comp Turbo CT3R-6262 Dynamic 360° Journal Bearing Turbo - 800HP (326262-1)

CT3R-6262 800HP Dynamic Journal Bearing Turbocharger by Comp Turbo

The CT3R-6262 360° Journal Bearing Turbocharger designed to support up to 800HP, this turbo delivers exceptional boost response and durability, making it an ideal choice for street and track.

Features

• 360° Journal Bearing System- Durable and cost-effective performance
• Suitable for Both Street and Track Use
• CTR Billet Aluminum 7+7 Extended Tip Compressor Wheel - 62MM
• Inconel 713C High Flow 10 Bladed Turbine Wheel - 62MM
• Titanium Bullet Nose Nut
• Fully Rebuildable & Upgradeable
• Weight: 15 LBS
• Satin Compressor Housing Finish
• Standard Turbine Housing Finish (if a Turbine Housing is chosen)
• Standard Anti-Surge
• Billet Cartridge Finish

Specifications

• Min-Max HP: 550-800HP
• Min-Max Displacement: 2.0L-4.0L
• Inlet: 3.0"
• Outlet: 2.0"
• A/R: .60
• Compressor Inducer: 62mm
• Compressor Major: 82mm
• Oil Feed: 1/8 NPT Female
• Oil Drain Flange Threads: 8MM x 1.25
• Turbine Inducer: 74mm
• Turbine Exducer: 62mm

Applications

• Universal

What's In The Box?

• 1 - CT3R-6262 Journal Bearing Turbo

Warranty

• 2-Year Warranty covering defects in materials and workmanship
