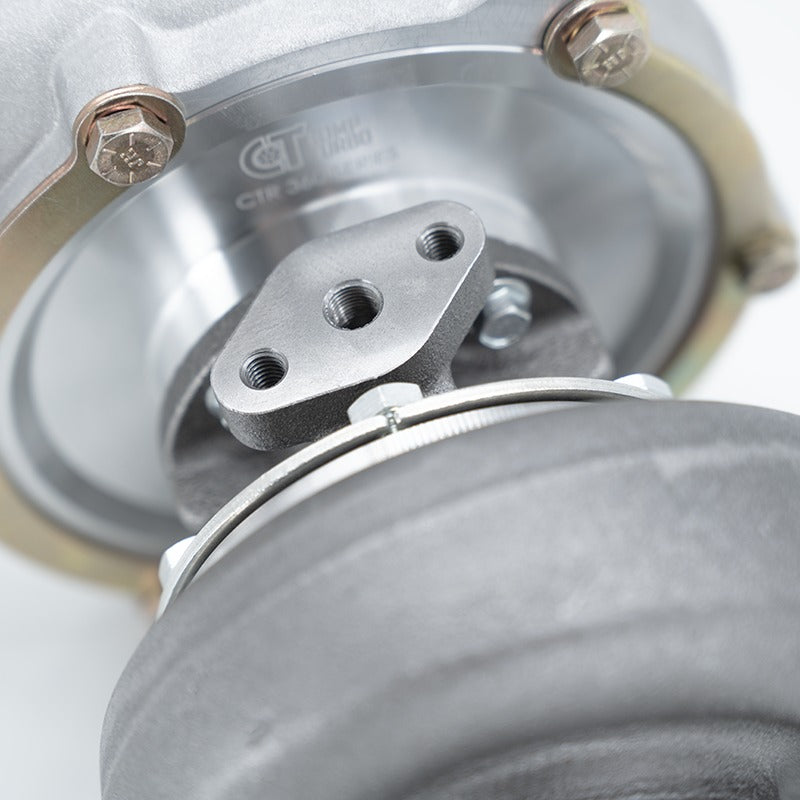

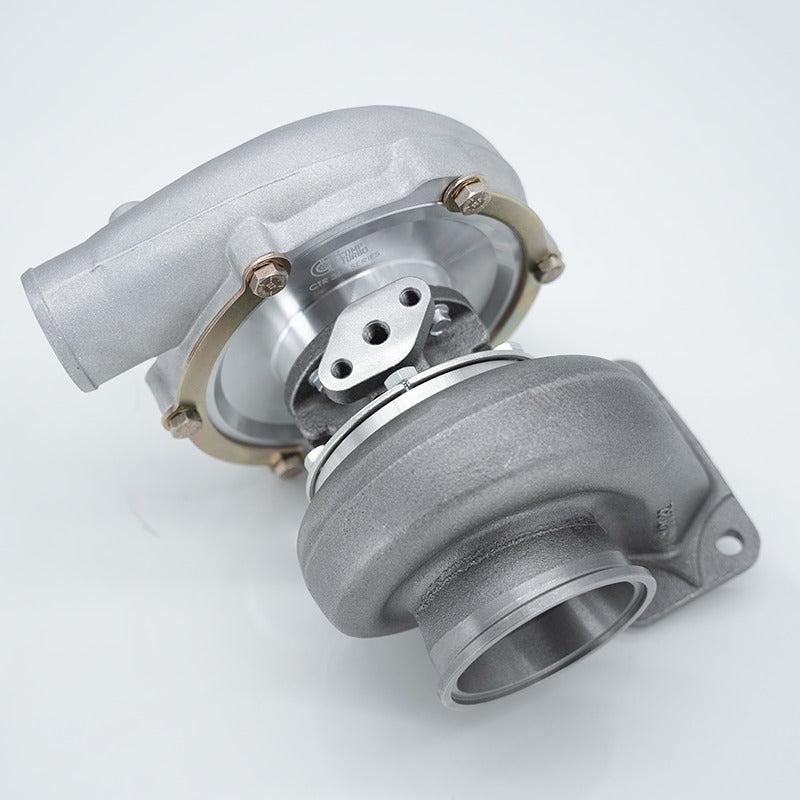

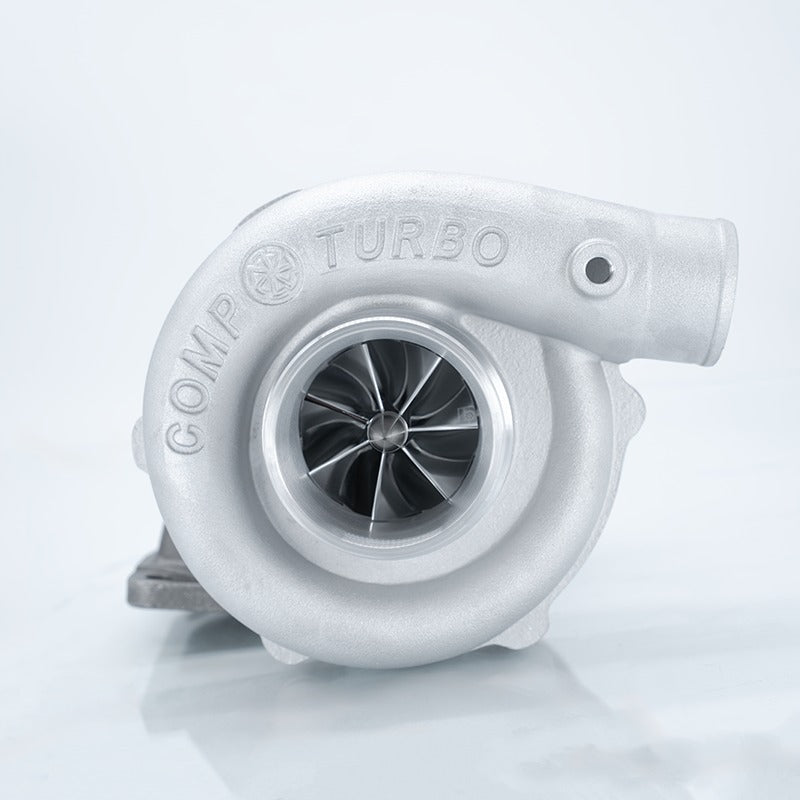

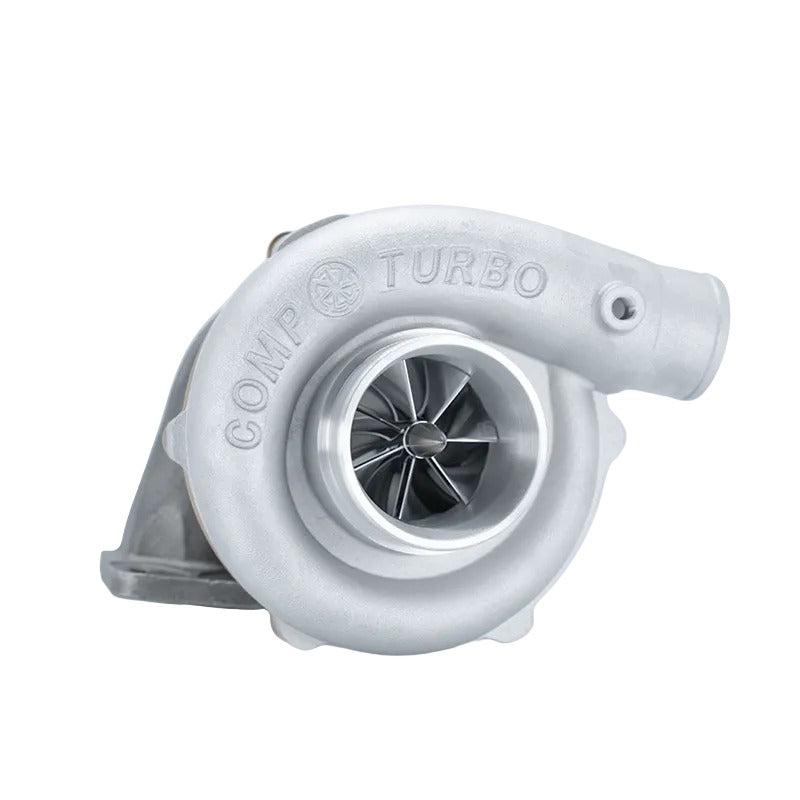

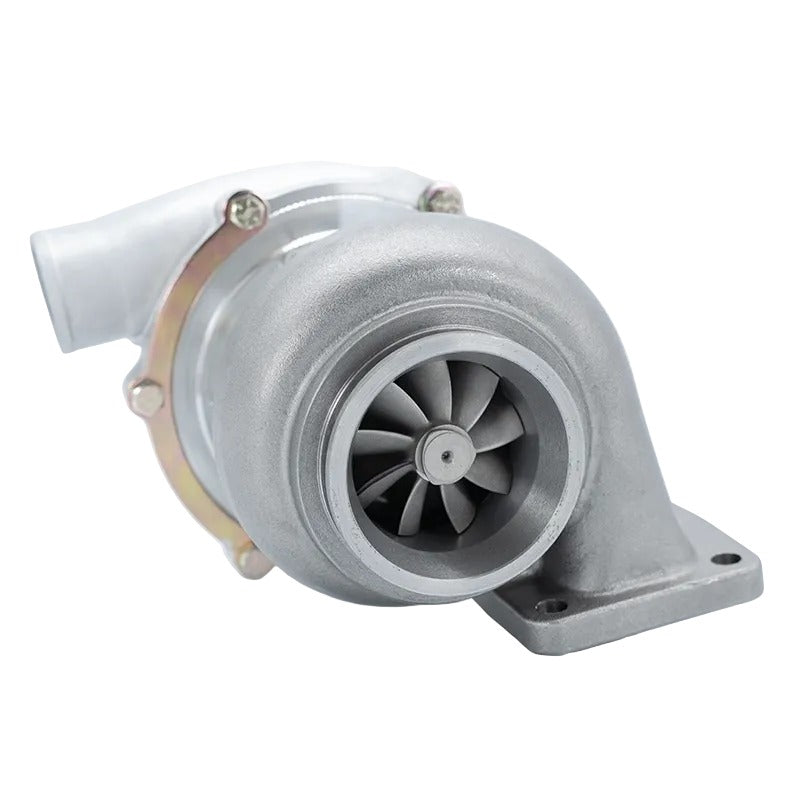

Comp Turbo CT3R-5862 Dynamic 360° Journal Bearing Turbo - 750HP (325862-1)

CT3R-5862 750HP Dynamic Journal Bearing Turbocharger by Comp Turbo

The CT3R-5862 360° Journal Bearing Turbocharger designed to support up to 750HP, this turbo delivers exceptional boost response and durability, making it an ideal choice for street and track.

Features

• 360° Journal Bearing System- Durable and cost-effective performance
• CTR Billet Aluminum 7+7 Extended Tip Compressor Wheel - 58MM
• Inconel 713C High Flow 10 Bladed Turbine Wheel - 62MM
• Titanium Bullet Nose Nut
• Fully Rebuildable & Upgradeable
• Weight: 15 LBS
• Satin Compressor Housing Finish
• Standard Turbine Housing Finish (if a Turbine Housing is chosen)
• Standard Anti-Surge
• Billet Cartridge Finish

Specifications

• Min-Max HP: 550-750HP
• Min-Max Displacement: 2.0L-4.0L
• Inlet: 3.0"
• Outlet: 2.0"
• A/R: .60
• Compressor Inducer: 58mm
• Compressor Major: 76mm
• Oil Feed: 1/8 NPT Female
• Oil Drain Flange Threads: 8MM x 1.25
• Turbine Inducer: 74mm
• Turbine Exducer: 62mm

Applications

• Universal

What's In The Box?

• 1 - CT3R-5862 Journal Bearing Turbo

Warranty

• 2-Year Warranty covering defects in materials and workmanship
